Long-Range UHF Wristbands

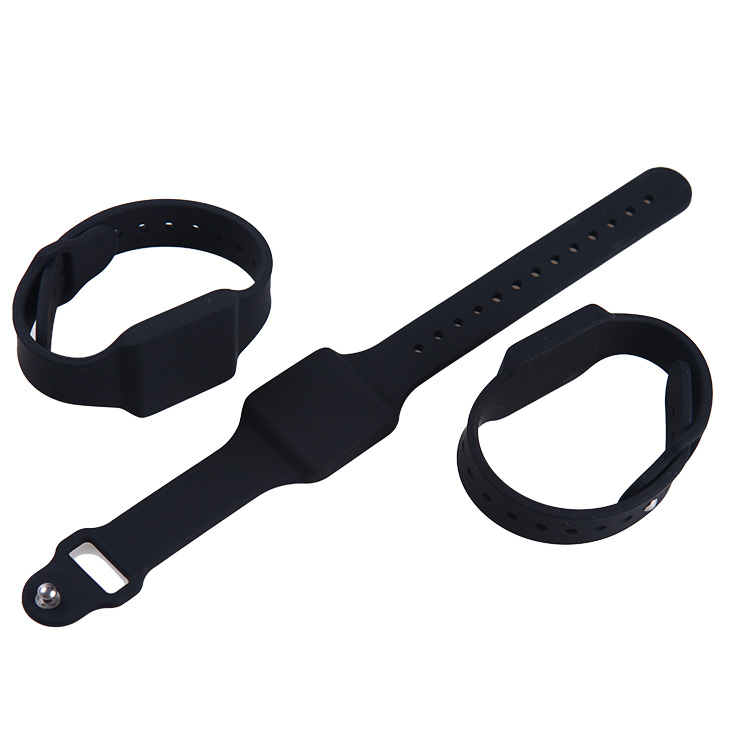

UHF RFID Wristbands
Long-Range EPC Gen2 Bands
Quick answer
At BOM level, UHF RFID wristbands embed an 860-960 MHz EPC Gen2v2 / ISO/IEC 18000-63 chip — Impinj Monza R6 / R6-P, NXP UCODE 8 / 9, or Alien Higgs-9. Into a body-tuned silicone, fabric, or paper wristband, enabling hands-free identification at 1-5 metre range. They are the credential of record for marathon and triathlon chip timing, theme-park ride throughput, conference session-attendance capture, hospital RTLS / patient-flow visibility, warehouse PPE-zone accountability, and any programme where wearers must be identified at a distance and in bulk rather than tap-by-tap. Treat this as the chip-pairing, on-body antenna, and reader-portal reference for race directors, RTLS integrators, and event operations teams.
- 1-5 metre on-body read range at 860-960 MHz EPC Gen2v2 (ISO/IEC 18000-63) — runners cross timing mats, attendees walk through session portals, patients move between zones, and warehouse staff enter PPE areas without stopping to tap. The same anti-collision protocol handles hundreds of bands in the read field per second.
- Body-tuned dipole antenna with ferrite / silicone-foam isolation recovers most of the 4-7 dB on-body loss that bare UHF tags suffer — Impinj Monza R6 / R6-P, NXP UCODE 8 / 9, or Alien Higgs-9 silicon options paired to the read-range, sensitivity, or on-tag user-memory requirement.
- Site-specific read-range test report on a standard Impinj R700 / Zebra FX9600 reader at FCC and ETSI output included with every order — the artefact race directors, RTLS integrators, and venue-ops teams need to commit a programme to a read-rate number.
Used in these industries
Deployments where this product is referenced on our industry landing pages.
At a glance
Use these short answers to decide whether this page matches the project before moving into the detail.
Air interface and standards
UHF 860-960 MHz, ISO/IEC 18000-63 Type C (EPC Gen2v2) — the same protocol that runs apparel-retail, supply-chain, and warehouse-portal deployments worldwide. Reader-side...
Silicon options
Impinj Monza R6 / R6-P — auto-tune, AutoPilot, 96-bit EPC + 32-bit user memory; high read sensitivity tolerates the on-body detuning that defines wristband performance....
Next step
Ready to move forward? Start your inquiry to get specific answers for this project.
Request quote and samples- On-body antenna design
-
- The human body absorbs UHF energy strongly — bare 902-928 MHz on a wrist typically loses 4-7 dB of read margin versus free-space tag testing.
- Proud Tek wristbands use body-detuned dipole antennas with a ferrite or silicone-foam isolation layer between the antenna and skin, recovering most of the loss; on-body read range with a standard portal reader at regulatory output runs 1-3 m in normal use, 3-5 m with high-gain antennas at the start / finish of a race chute.
- Read range and the reader matters more than the tag
-
- Tag chip sensitivity caps the floor; reader transmit power, antenna gain, polarisation, and beam shape determine the ceiling — the same wristband typically reads 1.5-2 m on a 6 dBic patch antenna and 4-5 m on a 9 dBic high-gain panel.
- Site-specific read-rate validation (RAIN RFID Alliance recommended methodology) is the only way to commit a programme to a number — Proud Tek supplies a free read-range test report on a standard Impinj R700 / Zebra FX9600 reader at FCC and ETSI output.
- Bulk read and anti-collision
-
- EPC Gen2v2 anti-collision (slotted-Aloha with Q-algorithm) handles hundreds of wristbands in the read field per second — the property that makes mass-attendance capture, marathon-mat timing, and theme-park ride-entry counting work without queueing.
- Real deployments routinely sustain 700-1,000 reads/sec at a single portal antenna with a properly tuned reader profile; the limit in practice is the back-end ingest rate, not the air interface.
- Wristband substrate options
-
- Medical-grade silicone (250 mm × 25 mm typical) — the default for multi-day wear: waterproof, flexible, latex-free, antimicrobial-stable.
- Fabric / woven polyester — for festival and conference programmes where the wristband is also a fashion / branding object.
- Tyvek (DuPont HDPE flash-spun) — lowest-cost disposable single-use option; tear-resistant, water-resistant, single-issue lifecycle.
- Adjustable: snap-button (reusable), pin buckle (reusable), tamper-evident adhesive tab (single-use), one-way slider (single-use).
- Race timing and chip-timing context
-
- Race-timing operators (MyLaps, MultiSport Timing, Race Result, ChronoTrack) standardised on UHF EPC Gen2 over the last decade for shoe / bib / wristband tags. Wristbands are the preferred form factor for triathlon and ultra-distance events where shoe-tag attachment is impractical or unhygienic at transitions.
- Mat geometry is the most-overlooked variable — a 4-antenna over/under mat configuration captures wristband UID even when the runner's wrist is at hip height in a sprint finish.
- Conference and venue-attendance use cases
-
- Session-room portal readers automatically log entry / exit, generating CEU / CPE / CPD compliance reports and badge-tier analytics without manual badge scanning.
- Pair the wristband with NFC business-card cards or NFC table-stand prompts for a hybrid model where the long-range UHF handles attendance and the NFC handles intentional / consented interactions.
- Healthcare RTLS adjacency
-
- UHF wristbands can serve passive RTLS in healthcare for wandering-prevention and patient-flow visibility on Epic / Cerner / MEDITECH-integrated head-ends — when active BLE or Wi-Fi RTLS is over-spec for the use case.
- HIPAA Privacy Rule (45 CFR 164.502 / 164.514) requires the wristband UID to be a non-PII serial; lookup to the patient record must happen server-side. Proud Tek programmes are designed to keep PHI off the chip.
- Industrial and PPE-zone use
-
- Workers in cold-storage, hazardous-zone, or restricted-access programmes wear UHF wristbands with portal readers at zone boundaries; safety systems maintain a real-time headcount for emergency-evacuation accountability.
- Wristband + reader combination is the lighter-weight alternative to UHF helmet tags / boot tags where the head- or boot-attachment is impractical (e.g. heat-controlled environments, mixed-PPE estates).
- Programme economics and MOQ
-
- MOQ 200 silicone, 300 dual-frequency UHF + NFC; lead time 12-15 business days standard, 15-18 days with dual-frequency or custom-colour silicone.
- Per-band cost lands at USD 0.55-1.20 for printed silicone at 1,000-10,000 units; Tyvek disposables in the USD 0.20-0.40 band; printed read-range test report bundled with the order at no charge.
- Compliance and end-of-life
-
- Reader / encoder regulatory compliance: FCC Part 15 Subpart C (US), CE / RED + EN 302 208 (EU/UK), ARIB STD-T106 (JP). Wristbands themselves are passive scatterers and do not require radio certification.
- End-of-life: silicone bands route to standard silicone recycling streams; Tyvek disposables to HDPE recovery where local infrastructure accepts them; chip silicon recovers cleanly in shred-and-separate processing.
Why UHF on a wristband — what the long range is actually buying
- Hands-free identification — UHF wristbands replace the choreography of "stop, present credential, wait for beep" with "walk past the antenna". The shift unlocks throughput at marathon mats, theme-park ride entries, and conference session doors.
- Bulk reading — EPC Gen2 anti-collision identifies hundreds of bands per second in the same field, which is what makes mass-attendance capture and dense-pack race finishes possible.
- Read range, not tap range — the trade-off is that UHF wristbands cannot be read by a smartphone (NFC operates at 13.56 MHz). When a programme needs both, the answer is a dual-frequency UHF + NFC band.
UHF vs NFC on a wristband — when to pick which
Reader gain dominates the read range
- FCC Part 15 Subpart C in the US permits 36 dBm EIRP (4 W) at 902-928 MHz; ETSI EN 302 208 in the EU permits 33 dBm ERP (≈35 dBm EIRP) at 865-868 MHz with LBT — the regulatory delta affects achievable range.
- RAIN RFID Alliance reference test methodology covers the angle, polarisation, and orientation parameters that move site-specific read range up or down by 2-3 dB.
- Specifying the band without specifying the reader / antenna geometry is the single most common cause of underwhelming UHF deployments.
From RFID timing 1989 to UHF wristbands as the default attendance credential
- 1989
ChampionChip introduces RFID race timing at the Berlin Marathon — the first mainstream proof that an RFID credential could replace bib-tear paper timing in a high-volume mass event.
- 2004
EPC Gen2 v1 standardised; UHF in the 860-960 MHz band gets a global protocol that race-timing, supply-chain, and apparel retail can build on.
- 2008-2012
Apparel retail (Walmart, Macy's, Inditex) drives Impinj Monza and NXP UCODE silicon volumes; per-tag economics drop into the cents range, opening event / wristband / PPE programmes.
- 2013
ISO/IEC 18000-63 standardised on EPC Gen2v2; the open-protocol baseline that every RAIN RFID device today implements.
- 2015-2018
Theme parks (Disney MagicBand, Universal TapuTapu) deploy UHF + NFC dual-frequency wristbands at scale, proving the body-tuned-antenna problem is solvable in a consumer credential.
- 2020-2024
Conference organisers, hospital RTLS programmes, and warehouse PPE-zone deployments adopt UHF wristbands as the default hands-free credential, with NXP UCODE 9 (extra ~3 dB sensitivity) and Impinj M700-series readers (sub-millisecond inventory cycles) becoming the reference stack.
- 2026 Today
Operating-playbook notes for marathon-half-marathon, theme-park-multi-day, conference-attendee-tracking, warehouse-PPE-compliance, and military-personnel-accountability programmes converge on body-tuned silicone (or Tyvek for single-day) + Monza R6-P / UCODE 9 chip + 6-9 dBic reader antennas + RAIN-Alliance read-rate validation as the pre-commit checklist.
UHF vs NFC for RFID wristbands — capability table
| Feature | UHF (860-960 MHz) | NFC (13.56 MHz) |
|---|---|---|
| Read range (on-body) | 1-5 m | 2-5 cm |
| Identification mode | Automatic, hands-free | Intentional tap |
| Bulk reading | Hundreds simultaneously (EPC Gen2 anti-collision) | One at a time |
| Phone compatible | No | Yes (iOS 14+ / modern Android) |
| Best for | Timing, tracking, counting, RTLS | Access, payment, NFC tap |
| Per-band cost (silicone) | USD 0.55-1.20 at 1k-10k | USD 0.30-0.70 at 1k-10k |
| Reader infrastructure cost | Higher (UHF readers + antennas) | Lower (NFC desktop / mobile) |
Useful next pages
Use these linked product, guide and comparison pages to keep the next click specific and practical.
Related UHF RFID wearables and credentials
Other on-body UHF form factors and the NFC wristband counterparts.
Industry landings
Primary UHF-wristband verticals: hands-free attendance, healthcare tracking, race timing, and warehouse safety.
Solutions, compares, and chip references
UHF chip-family decision context, frequency-choice compare, and the wristband pillar.
FAQ
What read range can I expect when the wristband is worn on a wrist?
On-body read range is typically 1-3 m on a standard 6 dBic patch antenna at FCC regulatory output, and 3-5 m on a 9 dBic high-gain panel at the same output. The human body absorbs UHF energy strongly at 902-928 MHz — bare-tag free-space tests over-state real-world performance by 4-7 dB. Proud Tek wristbands use body-detuned antenna design with a ferrite / silicone-foam isolation layer to recover most of that loss; reader-antenna gain provides the rest. Always validate site-specific range with a read-rate test at the target geometry — Proud Tek supplies a free test report on a standard Impinj R700 / Zebra FX9600 reader.
Can UHF wristbands also be tapped by NFC phones?
No — UHF operates at 860-960 MHz; NFC operates at 13.56 MHz. They are different physical layers and an NFC phone cannot read a UHF wristband. When a programme needs both hands-free long-range reading and NFC phone compatibility (theme-park / festival use case), specify a dual-frequency UHF + NFC wristband — both chips embedded in the same silicone band, MOQ 300, lead time 15-18 business days.
Which UHF chip should I specify?
Default: Impinj Monza R6 or R6-P for general race-timing, conference, and theme-park use — auto-tune, AutoPilot, mature ecosystem. Specify NXP UCODE 9 when read sensitivity is critical (long-distance portal reads, dense-pack race finishes) — UCODE 9 lifts sensitivity ~3 dB over UCODE 8, which often translates to 1-2 m of additional on-body range. Specify Alien Higgs-9 when you need 688 bits of on-tag user memory for event tier, registration class, or session-access flags that should not require a back-end lookup.
What MOQ and lead time should I plan for?
UHF silicone wristbands: MOQ 200, lead time 12-15 business days. Dual-frequency (UHF + NFC) silicone: MOQ 300, lead time 15-18 business days. Tyvek UHF wristbands: MOQ 1,000, lead time 10-12 business days. Custom-coloured silicone with logo silkscreen / debossing / pad-print / laser engraving: add 2-3 business days. Read-range test report bundled with every order at no extra cost.
Will the wristband interfere with hospital telemetry or diathermy equipment?
No — passive UHF wristbands do not transmit unless interrogated by a reader. The reader-side regulatory compliance (FCC Part 15 Subpart C in the US, EN 302 208 in the EU) bounds emissions in the 902-928 MHz / 865-868 MHz bands. Hospital telemetry typically operates at 608-614 MHz / 1395-1400 MHz / 2360-2390 MHz; therapeutic diathermy at 27.12 MHz / 2.45 GHz. None of these bands overlap with UHF RFID. Site-specific EMC reviews remain best practice for any new RF infrastructure.
Sources & references
Primary standards, OEM datasheets and regulatory documents cited by this article. All URLs were verified on the access date shown below.
- ISO/IEC 18000-63 — RFID for item management — Air interface 860-960 MHz Type C (EPC Gen2)
Canonical UHF air-interface standard — the protocol every RAIN RFID wristband and reader speaks.
- Impinj Monza R6 / R6-P UHF tag chip data sheet
Default silicon for UHF wristband programmes — auto-tune, AutoPilot, 96-bit EPC + 32-bit user memory.
- NXP UCODE 9 product brief
Higher-sensitivity UHF silicon for long-range portal reads and dense-pack timing finishes.
- Alien Higgs-9 product brief
688-bit user-memory UHF silicon for event-tier / session-access on-tag data programmes.
- FCC 47 CFR Part 15 Subpart C — Intentional Radiators (902-928 MHz UHF RFID)
Reader-side regulatory baseline for UHF RFID in North America — 36 dBm EIRP cap.
- ETSI EN 302 208 — RFID equipment 865-868 MHz
Reader-side regulatory baseline for UHF RFID in EU/UK — 33 dBm ERP with LBT.
