Cashless Payment RFID Wristbands
Cashless-Payment RFID Wristbands
DESFire EV3 Bands
Quick answer
Cashless-payment RFID wristbands embed a 13.56 MHz NFC chip — MIFARE DESFire EV2 / EV3 (AES-128 on-chip stored value), MIFARE Ultralight EV1 (server-side wallet), or NTAG213 / 216 (cloud-lookup). Into a silicone, fabric, PVC, or Tyvek band so attendees tap to pay at vendor POS instead of carrying cash or cards. The model has become the operating standard for music festivals, all-inclusive resorts, theme parks, cruise lines, and corporate-campus cafeterias because of three measurable effects: per-capita-spend uplift from reduced payment friction, queue collapse at peak-load bars and food stalls, and elimination of cash-handling shrinkage. This page is the chip-pairing, security-posture, PCI-scope, and platform-compatibility reference (Intellitix, Glownet, PlayPass, Tappit, CrowdBlink) for event ops teams and resort revenue management.
- MIFARE DESFire EV2 / EV3 (AES-128 mutual authentication + per-card key diversification per NXP AN10922) carries the guest balance as encrypted on-chip stored value — POS terminals transact when the network is down and reconcile later, eliminating connectivity-failure transaction loss in field, cruise-dead-zone, and outdoor-festival deployments.
- Compatible with every dominant cashless-platform vendor (Intellitix, Glownet, PlayPass, Tappit, CrowdBlink) and any custom NFC-POS via the chip-spec sheet; no integration work for the platform vendor beyond chip-encoding configuration.
- Silicone (multi-day reusable), woven fabric (premium + one-way slider anti-sharing), PVC (pool-centric), Tyvek (single-day disposable) — substrate matched to event duration, ticket tier, and connectivity envelope; full-CMYK / sublimation / debossed branding turns the band into a merchandise keepsake.
Used in these industries
Deployments where this product is referenced on our industry landing pages.
At a glance
Use these short answers to decide whether this page matches the project before moving into the detail.
Chip options for cashless payment
MIFARE DESFire EV2 / EV3 — AES-128 mutual authentication, on-chip stored value, offline-capable POS, transaction MAC + audit trail (EV3 SDM). The default for any program...
Air interface and ISO baseline
13.56 MHz HF, ISO/IEC 14443-A — the same air interface that runs hotel keys, transit cards, and contactless bank cards. Sub-second tap-to-pay latency at ISO/IEC 14443-4...
Next step
Ready to move forward? Start your inquiry to get specific answers for this project.
Get a quote for cashless payment wristbands- On-chip stored value vs server-side wallet — the offline question
-
- DESFire on-chip stored value: balance lives in encrypted DESFire files on the wristband; POS terminals can transact when the network is down and reconcile later. Critical for outdoor festivals, cruise dead-zones, ski-resort lift cafes.
- Server-side wallet (Ultralight / NTAG): every transaction round-trips to the platform back-end; reliable only when connectivity is guaranteed at every POS. Lower per-band silicon cost but higher infrastructure cost and zero failure tolerance.
- Security posture — DESFire AES-128 + transaction MAC
-
- AES-128 mutual authentication on every read / write; per-card key diversification per NXP AN10922 means compromising one wristband reveals nothing about any other in the batch.
- DESFire EV3 Secure Dynamic Messaging (SDM) generates a one-time CMAC on every tap that the back-end can verify, providing cryptographic anti-clone and replay protection inside the same protocol used for the payment itself.
- PCI-DSS scoping
-
- Closed-loop stored-value wristbands (no PAN, no cardholder data on the chip) are typically out of PCI-DSS scope for the wristband itself; the top-up step that takes a credit card stays in scope on the platform side.
- PCI-DSS v4.0 segmentation rules govern how the top-up infrastructure is isolated from the cashless POS network; confirm the scope assessment with the cashless-platform vendor (Intellitix, Glownet, PlayPass, Tappit, CrowdBlink) before signing.
- Regulatory frame for stored-value at events
-
- EU PSD2 (Directive (EU) 2015/2366) Art. 3(k) limited-network exemption — the legal frame that lets festivals and resorts operate closed-loop stored-value without becoming a regulated payment institution.
- U.S. CARD Act 2009 §402 governs general-purpose gift-card behaviour but does not apply to closed-loop event credentials — confirm with counsel for the specific programme.
- Platform compatibility
-
- Intellitix, Glownet, PlayPass, Tappit, CrowdBlink — the dominant cashless-platform vendors for festivals and events; each has documented chip-encoding formats and POS handshake spec.
- Custom platform integration via NXP DESFire SDK / NTAG NDEF — Proud Tek supplies the chip-spec and encoding sheet the platform vendor needs without extra integration work.

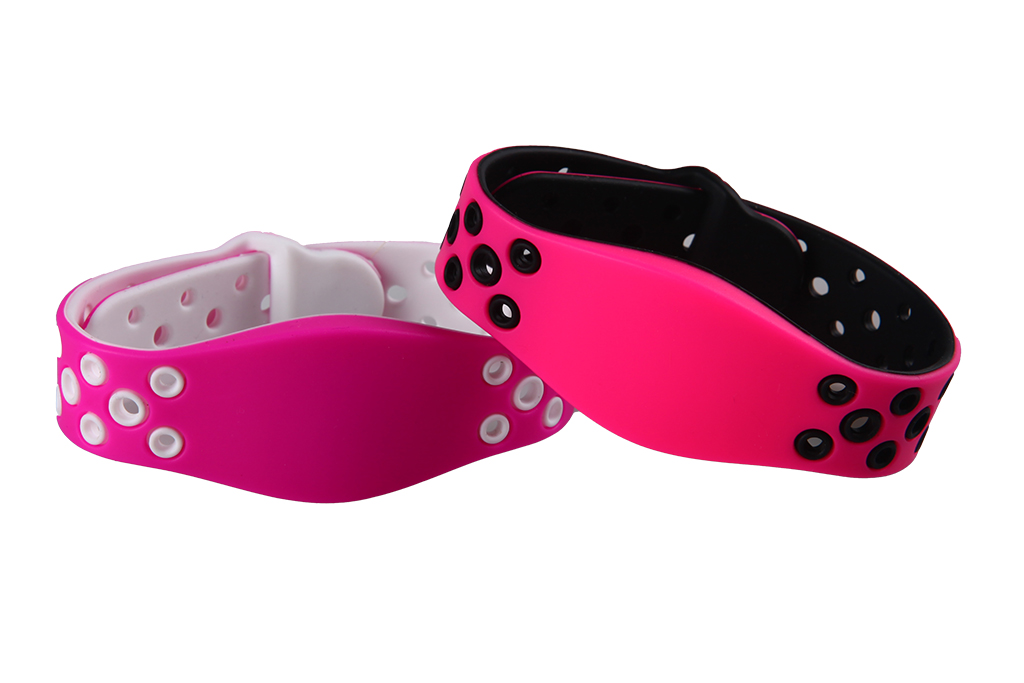

- Wristband substrates and form factors
-
- Silicone adjustable (250 mm × 25 mm typical, snap or watch-clasp closure) — multi-day waterproof reusable; the festival / resort default.
- Woven fabric / sublimation-printed — premium feel + one-way sliding lock that prevents transfer between attendees; pairs naturally with VIP-tier programmes.
- PVC — waterproof + low-cost; pool-centric and short-event use.
- Tyvek (DuPont HDPE flash-spun) — single-day disposable, lowest cost; tear-resistant, water-resistant, single-issue lifecycle.
- Closure as anti-sharing control
-
- Tamper-evident one-way slider on woven and Tyvek bands prevents attendee-to-attendee transfer (a documented sharing failure mode on reusable closures).
- Reusable closures (snap, watch-clasp) are appropriate for multi-event season passes and resort programmes where the band is identity + payment over weeks; combined with on-chip key diversification the security posture stays intact.
- Top-up, redemption, and refund flow
-
- Top-up: kiosk, vendor counter, mobile app (NFC tap on smartphone), or pre-event web portal; balance writes to chip (DESFire) or platform back-end (NTAG / Ultralight).
- Redemption: tap at vendor POS — DESFire flow is fully offline-capable; NTAG / Ultralight requires connectivity per transaction.
- Post-event refund: residual balance refunds to the linked card / bank account, typically within a few business days; refund policy and any minimum-threshold / processing-fee configured per platform; communicate at registration.
- Operational ROI signals
-
- Per-capita-spend uplift versus cash-only: published festival-cashless literature consistently reports a meaningful lift; magnitude varies with vendor mix, POS density, top-up friction, and pre-event communication.
- Cash-handling shrinkage on cash-only operations runs in the low-single-digit percent of gross — eliminated entirely once cash operations retire.
- Queue wait collapse: a tap completes in sub-second latency vs the multi-step cash transaction (count, change, receipt); peak-load bar and food-stall throughput typically lifts 30-50%.
- Branding, sponsorship, and post-event afterlife
-
- Custom-coloured silicone, sublimation-printed fabric, full-CMYK Tyvek with sponsor logos, event artwork, and sequential numbering — the wristband is also a merchandise / keepsake item for many programmes.
- Sponsor-funded top-up bonuses ("Tap to claim a £5 credit from Sponsor X") are a recurring monetisation pattern that turns the cashless system into a sponsorship-activation channel.
Why cashless wristbands — what the tap is replacing
- Cash POS at festivals routinely sees meaningful peak-period wait time and a low-single-digit percent shrinkage rate on gross — both eliminated when cash operations retire.
- Cellular / Wi-Fi POS at outdoor venues fails intermittently in peak crowds; on-chip DESFire stored value transacts through outages and reconciles later — a known reason festival operators specify DESFire over server-side wallet.
- The wristband is also identity, access, age-verification, and merchandise — a single credential that compounds the per-band investment across multiple programme functions.
DESFire on-chip stored value vs Ultralight / NTAG server-side wallet
Server-side wallet — Ultralight EV1 / NTAG213 / NTAG216
- Wristband holds a token / unique UID; balance lives in the platform back-end
- Every POS transaction round-trips to the cloud — connectivity required
- Lower per-band silicon cost (USD 0.30-0.70 silicone)
- 32-bit password (Ultralight) — fine for token, not for value
- Failure mode: any POS network outage halts payment
On-chip stored value — MIFARE DESFire EV2 / EV3
- Encrypted balance lives on-chip in DESFire files; back-end reconciles asynchronously
- Offline-capable POS — transactions complete during outages, sync later
- Higher per-band silicon cost (USD 0.80-1.50 silicone) but lower infrastructure cost
- AES-128 mutual auth + per-card diversified key (NXP AN10922) + DESFire EV3 SDM CMAC
- Failure mode: lost wristband loses the on-chip balance unless guest registered to an account
What the cashless model actually moves on the operator P&L
- Per-capita-spend uplift versus cash-only: meaningful and consistently reported, magnitude depends on vendor mix and POS density.
- Cash-handling shrinkage (counterfeit, mis-count, theft): low-single-digit percent of gross eliminated once cash retires.
- Real-time vendor-sales dashboard: leading indicator for restock, staffing, and peak-management decisions vs retrospective cash-register totals.
- Sponsor-funded top-up bonuses: a recurring monetisation pattern that turns the cashless rail into a sponsorship-activation channel.
From wristband-as-ticket to wristband-as-payment — the cashless event timeline
- 1994
NXP MIFARE Classic 1K launches; the silicon that opens HF contactless ticketing for transit, access, and early event credentials.
- 2008
Courtois / Meijer / Verdult publish the academic break of CRYPTO-1; festival cashless programmes accelerate the move from MIFARE Classic to DESFire for any deployment handling meaningful balances.
- 2010-2014
Intellitix, Glownet, PlayPass, and Tappit scale festival cashless across major North American and European events; on-chip DESFire stored value emerges as the offline-capable default.
- 2015
EU PSD2 (Directive 2015/2366) Art. 3(k) limited-network exemption codifies the legal frame for closed-loop event stored-value programmes.
- 2017-2020
Theme parks (Disney MagicBand, Universal TapuTapu) deploy NFC payment wristbands at consumer scale; the design pattern crosses over to all-inclusive resorts and cruise lines.
- 2021-2024
MIFARE DESFire EV3 with Secure Dynamic Messaging (SDM) ships; transaction MAC + audit trail close the residual cryptographic gap and become the default chip for new programmes handling material balances.
- 2026 Today
Reference operating practice across festival-multi-day, all-inclusive-resort, theme-park-payment, cruise-cabin-tab, and corporate-campus-cafeteria programmes converge on DESFire EV3 + body-tuned silicone (or one-way-slider woven for VIP) + Intellitix-/Glownet-/PlayPass-/Tappit-class platform + sponsor-funded top-up activation as the operator-side template.
Chip selection for cashless payments
| Chip | Security | Offline capable | Cost tier | Best for |
|---|---|---|---|---|
| MIFARE Classic 1K | CRYPTO-1 (legacy, known academic attacks) | Yes (stored value on chip) | $ | Short-duration budget closed-loop events only |
| MIFARE Ultralight EV1 | 32-bit password, unique UID | No (server-side wallet) | $ | Token-based cashless at connected venues |
| MIFARE DESFire EV2 | AES-128 mutual auth | Yes (encrypted stored value) | $$ | Multi-day events, high security |
| MIFARE DESFire EV3 | AES-128 + SDM audit trail | Yes (encrypted + audit) | $$$ | Large festivals, full cashless ecosystem |
| NTAG213 / NTAG216 | 32-bit password, unique UID | No (cloud-based lookup) | $ | Internet-connected venues, cloud wallet |
How cashless wristband payments work — flow
- Step 1: Guest registers at the event and receives an NFC wristband linked to a cash balance or credit card.
- Step 2: Guest tops up the wristband balance at a kiosk, website, or mobile app — self-service or staffed depending on event setup.
- Step 3: At vendors, bars, and merchandise booths, the guest taps the wristband on a POS reader.
- Step 4: POS deducts the transaction from the wristband's account — on-chip for DESFire stored value, server-side for NTAG / Ultralight token-based.
- Step 5: Post-event, residual balance refunds to the guest's linked credit card or bank, typically within a few business days subject to platform configuration.
Useful next pages
Use these linked product, guide and comparison pages to keep the next click specific and practical.
Related event and festival RFID wristbands
Adjacent disposable and reusable wristband form factors for multi-day events.
Industry landings
Events-venues and hospitality context for cashless-payment wristband programmes.
Related solutions, compares, guides, and pillar
Cashless access-control solution, chip-security decision context, festival guide, and the wristband pillar.
FAQ
Which cashless payment platforms are compatible with your wristbands?
Compatible with every dominant cashless platform: Intellitix, Glownet, PlayPass, Tappit, CrowdBlink — plus custom NFC-based POS systems via the standard NXP DESFire / NTAG SDK interfaces. Proud Tek supplies the chip-spec and encoding sheet the platform vendor needs to configure the wristband; no integration work beyond standard chip-encoding configuration. If you have not yet selected a platform, the team can recommend options based on event size, connectivity envelope, and security posture.
How secure are cashless payment wristbands against fraud?
MIFARE DESFire EV2 / EV3 wristbands run AES-128 mutual authentication with per-card key diversification (NXP AN10922) and EV3 Secure Dynamic Messaging (SDM) CMAC on every tap; cloning, relay, and replay attacks are mathematically blocked at the chip level. Closed-loop wallet architectures (no PAN, no cardholder data on the wristband) typically keep the wristband itself out of PCI-DSS scope — the top-up step that takes a credit card stays in scope on the platform side. Confirm the scope assessment with the cashless-platform vendor. MIFARE Classic 1K should not be used for new deployments handling material balances — its CRYPTO-1 cipher has documented academic attacks (Courtois/Meijer/Verdult, Garcia et al., 2008-2015).
What happens if an attendee loses their cashless wristband?
The lost wristband is immediately deactivated in the cashless platform by event staff, blocking any further transactions. A replacement wristband is issued at a help desk and linked to the attendee's existing account; transaction history and remaining balance transfer if the original was registered to an account. Important caveat: with on-chip DESFire stored value, balance recovery is only possible if the guest registered the wristband to an account at top-up — unregistered stored-value-on-chip wristbands have no recovery path if lost, exactly like a paper bank note.
How do guests get refunds for unused balance?
Post-event refunds are typically processed automatically to the guest's linked credit card or bank account within a few business days of event close. Some platforms set a minimum refund threshold or apply a small processing fee; both are configured per platform (Intellitix, Glownet, PlayPass, Tappit, etc.) and communicated to guests at registration. Confirm refund-policy configuration with the platform vendor before going live, and document it in the guest-facing terms.
Can we use our own POS or do we need special hardware?
Most cashless platforms ship NFC-enabled POS terminals that pair with the wristbands and the platform back-end. Some platforms also support integration with existing POS via API. The wristband itself works with any ISO/IEC 14443-A reader; the question is whether the POS app implements the platform's chip handshake. Discuss POS requirements upfront and Proud Tek will recommend a wristband-platform-POS combination that matches the existing footprint.
Does this fall under PSD2 in the EU?
Closed-loop event stored-value typically operates under the PSD2 (Directive (EU) 2015/2366) Art. 3(k) limited-network exemption — restricted to use within a defined network of service providers (e.g. the festival's vendors) and a limited range of goods and services. This is the same exemption that supports closed-loop gift cards and campus cashless programmes. Programmes that allow the stored-value to spend outside the closed network move into regulated-EMI territory and require proper authorisation. Confirm scope with counsel for the specific programme.
Sources & references
Primary standards, OEM datasheets and regulatory documents cited by this article. All URLs were verified on the access date shown below.
- ISO/IEC 14443-1..4 — Identification cards — Proximity cards
13.56 MHz HF air-interface standard underlying NFC payment wristband chip operation.
- NXP MIFARE DESFire EV3 product data sheet
AES-128 + Secure Dynamic Messaging silicon — the default chip for new cashless wristband deployments handling meaningful balances.
- NXP Application Note AN10922 — Symmetric key diversification with MIFARE DESFire
Per-card key diversification scheme that bounds the blast radius of any single-band compromise.
- NXP MIFARE Ultralight EV1 product data sheet
Server-side-wallet silicon used at connected venues with reliable POS connectivity.
- Courtois / Meijer / Verdult — CRYPTO-1 cryptanalysis on MIFARE Classic
Academic-attack literature that defines the security posture conversation around using MIFARE Classic for new payment programmes.
- EU PSD2 — Directive (EU) 2015/2366 on payment services in the internal market
Art. 3(k) limited-network exemption — the legal frame for closed-loop event / resort stored-value.
- PCI-DSS v4.0 — Payment Card Industry Data Security Standard
Scoping reference for cashless-platform top-up infrastructure (the credit-card side that remains in scope).
- Intellitix — RFID festival cashless platform overview
Reference cashless-platform vendor for major North American festival deployments.
- Glownet — RFID festival cashless and access control
Reference cashless-platform vendor for European festival deployments.
- Tappit — global cashless-payment, wristband and access platform
Reference cashless-platform vendor for festival, sports, and resort deployments.
