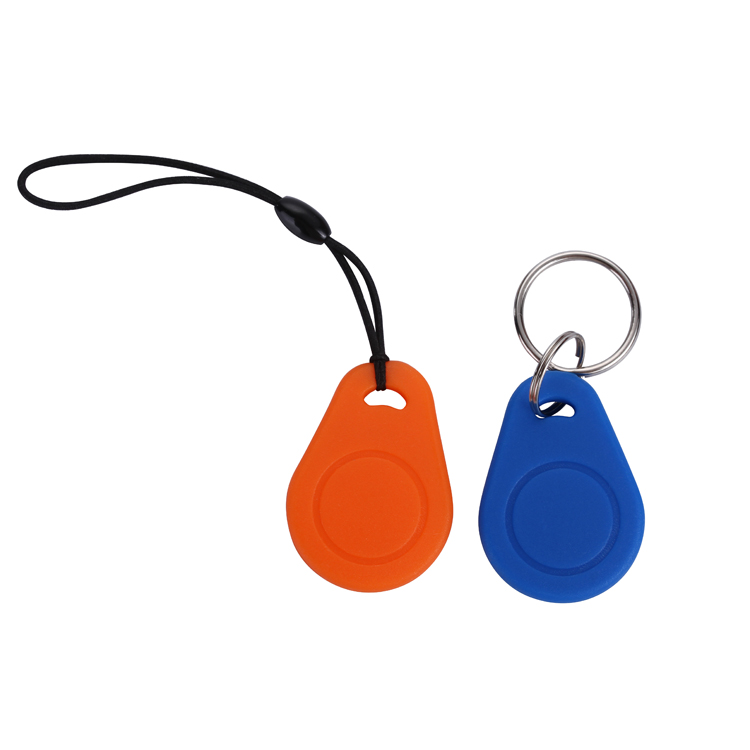

RFID Silicone Keyfob

Where a silicone keyfob is the only credential that survives the duty cycle

• -40 / +230 °COperating range; tolerates sauna + autoclave + pool chemistry
• IP68 + IP69KContinuous immersion + 60-80 °C / 80-100 bar wash-down
• USP Class VIPharma-contact + ISO 10993-1 / -5 / -10 biocompatibility
• 5-10 yrField life; no plasticiser migration, no weld-seam failure

• Aquatic centres, water parks and spas — 1-10 ppm free chlorine, 1-5 ppm bromine, continuous wet-handling; silicone's Si-O backbone is chemically inert where PVC plasticises and ABS mould-lines admit water within 3-12 months.
• 24-hour gyms and wellness studios — sweat pH 4.5-7.0, sauna cycling 80-95 °C, drops onto rubber gym flooring; silicone's -40 °C to +230 °C range and Shore A 60 flex absorb the envelope without cracking.
• Food processing and commercial kitchens — IP69K daily wash-down with hot-caustic (1-2 % NaOH, 60-80 °C), peracetic acid (80-150 ppm), chlorinated-alkaline cleaners; silicone with moulded-in stainless ring (no glued seam) is the only credential with no water-ingress path.
• Paediatric, daycare and healthcare facilities — skin-contact programmes where the credential is mouthed, chewed, or worn on a wrist for an 8-12 h shift; USP Class VI + ISO 10993 biocompatibility plus LFGB / 21 CFR 177.2600 food-contact chemistry clears the hygienic envelope.
• Outdoor residential / campus / ski-resort access — UV exposure, thermal cycling (-30 °C winter to +60 °C black-asphalt summer), ice contact; silicone's UV resistance (no yellowing, no chalking) and thermal tolerance outlast commodity ABS by 3-5× in the same duty.

Platinum-cured vs peroxide-cured — why the spec line matters

• Platinum-cured PDMS (our default) uses a platinum catalyst addition cure: no peroxide byproducts, no residual siloxanes to leach, clears USP Class VI + ISO 10993 + EN 1186 food-contact migration with margin.
• Peroxide-cured silicone uses dicumyl-peroxide cure: 0.5-1.5 % residual decomposition products remain in the matrix and can migrate; disqualified for paediatric, medical, food-contact and pharma-ancillary programmes.
• Cost delta platinum vs peroxide is ≈ 15-25 % of compound cost (≈ $0.08-0.15 per keyfob) — negligible next to the labour of re-qualifying a programme that failed migration testing at LFGB retail audit.
• Low-grade industrial-silicone compound (non-food-grade, peroxide-cure, unknown pigment chemistry) is cheaper still — but cannot legally enter EU / US food-contact or medical channels, and is explicitly flagged on the DoC we ship.
• The spec line "platinum-cured medical-grade silicone, ISO 10993-5 / -10 pass, USP Class VI, 21 CFR 177.2600 + LFGB § 31, EN 1186 ≤ 10 mg/dm²" is the shortest copy-paste that closes the chemistry audit for any serious programme.

Field-duty record — what 5-year aquatic and food-plant programmes actually see

• 14,000-member aquatic-centre chain (5-year field data): silicone + DESFire EV2 keyfob failure rate 0.3 %/year; ABS + MIFARE Classic predecessor was 9-12 %/year failure rate, driven by water ingress at the mould line.
• Commercial-kitchen programme at a regional QSR operator (3-year field data): moulded-in stainless-ring silicone fob survived daily hot-caustic + peracetic wash-down indefinitely; ABS predecessor had a 22 % 18-month failure rate at the welded seam.
• Paediatric-hospital visitor-credential programme (2-year field data): ISO 10993-cleared silicone fob passed infection-control audit and autoclave cycling (134 °C / 18 min) for reissue; PVC predecessor had been retired after LFGB audit flagged phthalate migration.
• European retail-gym chain (4-year field data): silicone fob with pad-printed logo survived 4-5 sauna cycles / day + sweat + outdoor UV with no silkscreen fade or chalking; ABS predecessor had UV-yellowed within 18 months and lost 15-20 % of units to cracking at the ring-hole.
• Ski-resort lift-access programme: silicone fob with Shore A 60 body + stainless split ring survived -30 °C to +60 °C daily cycling + glove-handling for 6+ seasons; moulded-in ring eliminated the 12-18 % annual loss-rate the prior ABS fob incurred at the welded lanyard crimp.

How to roll out a silicone keyfob programme without failing a chemistry or PACS audit

1. Week 1 — cure chemistry + shape + chip

   Freeze platinum-cured (medical) vs peroxide-cured (non-contact), stock mould vs custom tooling, and chip per-site (MIFARE Plus SE / DESFire EV3 / NTAG 424 DNA / EM4305 / T5577); model ISO 10993 + USP Class VI + 21 CFR 177.2600 + LFGB + EN 1186 evidence pack into the RFQ.

2. Weeks 2-3 — chemistry + PACS validation

   Ship 200-500 samples into the chemistry lab (overall-migration EN 1186, biocompatibility ISO 10993-5 / -10) and into the PACS bench (tap 3-5 cm on every reader, HF + LF per chip family); confirm IP68 72-h immersion and IP69K wash-down pass.

3. Weeks 4-5 — encode + issue workflow

   Stand up encode bench tied to HRIS / membership CRM / visitor management; revocation latency < 10 s; pilot batch 500-2,000 credentials; confirm retention under sauna + pool + kitchen duty in live sites.

4. Weeks 6-10 — aquatic / gym / healthcare / food-plant rollout

   Deploy across aquatic centres (DESFire EV2 + IP68), gyms (NTAG 424 DNA + app-tap), paediatric / healthcare (ISO 10993 + autoclave reissue), food-plant (LFGB + IP69K); audit reads, failures, migration lab re-tests quarterly.

5. Month 4+ — estate audit + sustainability reporting

   Operating context extends to aquatic, fitness, healthcare, paediatric and food-processing silicone-keyfob programmes — review periodicity, refresh windows and audit obligations vary by vertical and are documented per estate. wire credential issue / revoke / retirement events into ISO/IEC 27001 A.11.1 + SOC 2 CC6 + HIPAA 164.310 + WEEE general-rubber + stainless-ring metal-stream disposal logs + Higg FEM / CDP sustainability reporting.

• Specify platinum-cured medical-grade silicone explicitly — do not accept "food-grade silicone" without a supplier declaration naming the cure chemistry; peroxide-cured compound disqualifies paediatric / medical / pharma-ancillary programmes.
• Close the chemistry audit: ISO 10993-1 / -5 / -10 biocompatibility, USP Class VI where pharma-ancillary, FDA 21 CFR 177.2600 + LFGB § 31 food-contact, EN 1186 overall-migration ≤ 10 mg/dm², RoHS 3 DoC, REACH SVHC screen, California Prop 65 disclosure — declared on every ≥ MOQ 500 shipment.
• Spec 304 or 316 stainless split ring moulded into the silicone body — plated-steel rings rust in pool and marine within 6-12 months and stain the body; cost differential is < $0.05 per unit.
• Don't use CRYPTO-1 MIFARE Classic in a new silicone rollout — the IP68 housing is engineered for a decade in the field; pair it with MIFARE Plus SE SL1 migration mode or DESFire EV2 / EV3 AES-128 from day one, or NTAG 424 DNA SUN if you want tap-to-reveal or anti-cloning.
• Stock moulds (round Ø 35 mm, oval 45 × 30 mm, rectangle 40 × 25 mm) and differentiate via PMS colour + silkscreen / pad-print — custom tooling (~$1,500-3,500) only makes sense above 1,000 units; below that, per-fob amortised cost exceeds stock mould by 3-5×.
• Commission PACS integration and IP68 soak-test in the pilot: a 72-h continuous-immersion test at 1.0 m in chlorinated water mirrors the duty cycle; expect zero read failures on a correctly moulded programme.
