RFID Tag Read Range Too Short? How to Fix It

Why RFID read range falls short of specifications

Every short-range complaint opens the same way: the tags are defective. They almost never are. The 'defective' tag is usually doing exactly what it was designed to do, having been asked to broadcast through a steel shelf, a shrink-wrapped pallet of bottled water, or a reader still set to the polite factory power level nobody thought to raise. Read range is rarely about the tag itself and mostly about what you mounted it on, how you aimed it, and how much power you let the reader use. Before you RMA a single inlay, walk the read zone.

• Metal surfaces: the most common culprit. Metal reflects and detunes RF energy, reducing the effective read range of standard tags by 50-90% when mounted directly on metallic assets. The solution is anti-metal tags with ferrite isolation layers designed to perform on metal.
• Liquid and water interference. UHF RF energy is absorbed by water and water-based liquids. Tags on beverage containers, chemical drums, or in wet environments experience significant range reduction. Reorienting the tag away from direct liquid contact or using tags with elevated standoff designs mitigates this effect.
• Tag orientation mismatch: UHF RFID antennas are polarized (linear or circular). If the tag's antenna is perpendicular to the reader antenna's polarization, a null zone forms and read range drops dramatically. Aligning tag and reader antenna polarization or switching to circularly polarized reader antennas solves this.
• Reader power settings: many RFID readers ship at reduced transmit power to comply with regional regulations. If the reader power is set below the allowed maximum, increasing it within regulatory limits immediately extends read range.
• Antenna cable loss: long coaxial cable runs between the reader and antenna introduce signal attenuation. Every additional meter of cable reduces effective radiated power. Using shorter cables, lower-loss cable types, or mounting the reader closer to the antenna recovers lost range.

How do you handle step-by-step range optimization for UHF RFID?

Work the list in order. It runs from the cheapest fix to the most expensive, so the free wins (power, cables, orientation) are genuinely exhausted before anyone signs a purchase order for new hardware.

• Step 1: Verify reader transmit power is set to the maximum allowed by your regional regulation (e.g., 36 dBm EIRP in the US, 33 dBm ERP in the EU). Many readers default to lower power levels out of the box.
• Step 2: Check antenna cable connections for tight SMA or RP-TNC fittings, and measure cable length. Replace cables over 3 meters with low-loss LMR-400 type if possible.
• Step 3: Confirm tag orientation relative to the reader antenna. For linear-polarized reader antennas, align the tag's long axis with the antenna's polarization plane. For mixed orientations, use a circularly polarized reader antenna.
• Step 4: Measure the distance between the tag and any metal or liquid surface. If the tag is directly on metal, replace it with an anti-metal tag. If near liquid, add a standoff spacer of 3-5 mm between the tag and the surface.
• Step 5: Test with a known-good reference tag at the expected read position. If the reference tag reads fine, the issue is with the deployed tags (wrong model, damaged, or counterfeit). If the reference tag also fails, the issue is environmental or reader-side.

When to upgrade your RFID tags for better range

There comes a point where tuning the power, fixing orientation, and adding standoff have all been tried and the range is still short. That is when the honest answer becomes a better tag, not another workaround stacked on the last one. The trick is reaching that conclusion before the purchase order, not after a warehouse full of inlays has already proven it.

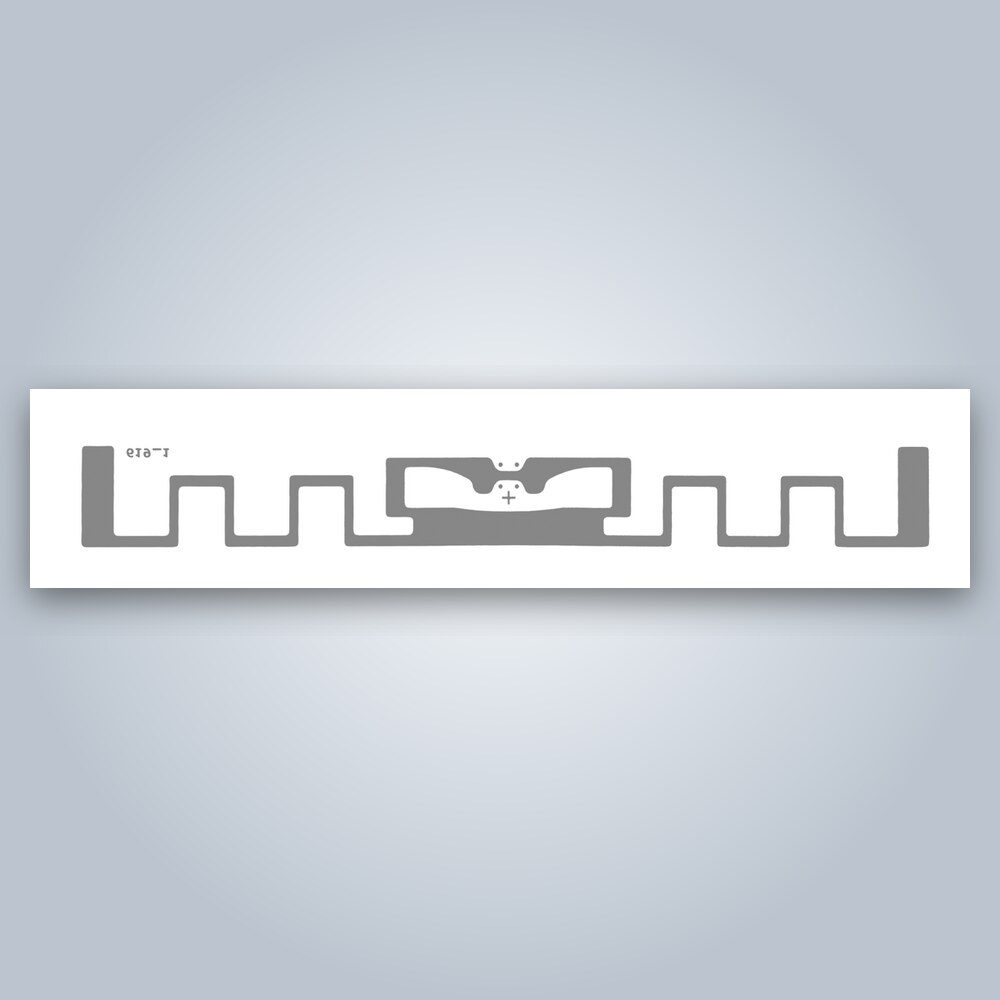

• If you are using older-generation RFID chips (e.g., Alien Higgs-3, Impinj Monza 4), upgrading to current-generation chips like Impinj M730 or NXP UCODE 9 provides 2-4 dB better sensitivity, translating to 30-50% more read range in the same environment.
• Tags sized appropriately for the application matter. Larger antenna area captures more RF energy. If a compact tag's range is insufficient, moving to a slightly larger form factor may solve the problem without any system-level changes.
• For permanently metal-mounted assets, specify purpose-built on-metal tags from the start rather than trying to make general-purpose tags work with adhesive spacers and workarounds.
• Proud Tek can provide sample tags for range testing in your environment before you commit to a production order, allowing you to validate performance in the exact conditions where tags will be deployed.

Range loss factors quantified — water, metal, dense crowds, occlusion

When stakeholders ask 'why is the read range only 40% of the datasheet?' you need numbers, not hand-waving. The benchmark losses below come from RAIN Alliance, GS1, Auburn RFID Lab and Voyantic test reports and let you size deployments with realistic expectations.

• Water absorption — a 50-pack of water bottles inside a corrugated case attenuates UHF signals by 6-10 dB; a single bottled-water item drops range by 30-50%; tags directly on a saline IV bag or fluid container drop range by 80-95%. Mitigation: tag at top of stack, anti-liquid inlay (Confidex Survivor B Aqua, Xerafy Pico), or HF/NFC short-range tap.
• Metal proximity — tag flush on metal drops range 80-100%; tag with 3 mm air-gap on metal drops range 50-70%; tag with 5-10 mm foam standoff on metal drops range 30-50%; ferrite-backed on-metal tag (Confidex Ironside, Xerafy Mercury) drops range 40-60% from free-space spec. Single biggest mitigation: use purpose-designed on-metal tags from start.
• Dense-tag environments — at 50-100 tags in field, no degradation; at 500-1000 tags, sensitivity drops 3-5 dB; at 2000+ tags, sensitivity drops 5-10 dB. Mitigation: Session 1/2 with persistent inventoried flag (Impinj Octane Reader Mode 1002), longer dwell time per inventory cycle.
• Reader-tag orientation mismatch — linear-polarised reader antenna with perpendicular tag drops range 80-95%; circular-polarised reader antenna with random-orientation tag drops range only 3-5 dB (the 3 dB peak gain reduction). For uncontrolled tag orientation, always use circular-polarised antennas.
• Cardboard, plastic and wood occlusion — typically <2 dB attenuation per layer; typical pallet-of-corrugated-boxes attenuates 4-8 dB cumulatively. Reads usually still work but at reduced range; account for this in dock-door portal sizing.

Voyantic, CISC and ARC certification — the diagnostic tools and standards that take guessing out

Three RFID test platforms and one certification programme dominate professional read-range diagnostics. Knowing which to use accelerates root-cause analysis and provides the data needed to push back on vendor claims that don't match field performance.

• Voyantic Tagformance — the gold-standard lab test fixture for tag sensitivity (Read Power on Tag, RPOT) and backscatter analysis. Costs $25K-$60K for a basic fixture; available as service from Voyantic, Avery Dennison, Auburn RFID Lab and SML for $500-$3K per tag SKU characterisation.
• CISC RFID Xplorer — handheld field-tester for in-situ read-range and reader interference measurement. $4K-$12K per unit; well-suited for distributor and integrator field-engineering teams who need on-site diagnostics.
• ARC (Auburn Reliability Certification) — the Auburn University RFID Lab benchmark for retail-mandate inlays. ARC Spec G is the Walmart/Target/Macy's source-tagging gating standard; ARC certification adds $5K-$25K to the inlay vendor's cost but is the price of admission for the largest mandate programmes.
• ISO/IEC 18046 — the international standard for RFID test methods (read range, anti-collision, reliability). Used by buyer-side procurement teams to define RFP test criteria; vendor reports referencing ISO 18046 are more reliable than marketing-spec free-space numbers.
• Open-source diagnostics — ResearchGate has multiple peer-reviewed papers on RFID-XYZ test methodology; community-built tools like LLRP Toolkit and SLLURP let integrators dump raw reader data for custom analysis. Useful when your problem doesn't fit the canned vendor-tool reports.
