NFC Card Cloning

How NFC card cloning works and which cards are vulnerable

Ask a security team whether their access cards can be cloned and you'll often get a confident 'no' — followed, a beat later, by 'well, we've used these badges for years.' Longevity is not a security property. A whole generation of access cards was designed before cloning was part of the threat model, and copying one of those is closer to a parlor trick than a heist. What follows sorts the cards that hand over their identity to anyone who asks from the ones that don't — because the gap between those two groups is the entire ballgame.

• 125 kHz proximity cards (EM4100, HID Prox II) transmit their ID number in plain text with zero encryption or authentication. A device held near the card for 1-2 seconds captures the full ID, which can be written to a blank clone card. These cards are the easiest to duplicate.
• MIFARE Classic 1K/4K cards use Crypto-1 encryption, which was cryptographically broken in 2008. Publicly available tools can extract the sector keys and dump the entire card contents in minutes, enabling full clones that are indistinguishable from the original to the reader.
• The cloning risk is not theoretical. Security researchers, penetration testers, and unfortunately bad actors regularly demonstrate RFID card cloning at buildings, hotels, and corporate offices using pocket-sized devices.
• Once a card is cloned, the attacker has persistent access until the organization detects the breach, changes the reader configuration, or revokes the card. Which may not happen for weeks or months if no monitoring is in place.

What clone-resistant card technologies work?

• MIFARE DESFire EV2/EV3 — uses AES-128 symmetric encryption with mutual authentication. The reader and card each prove their identity to each other using cryptographic challenge-response protocols. Copying the card's UID is useless because the clone cannot produce the correct cryptographic response.
• HID iCLASS SE / SEOS. Uses a Secure Identity Object (SIO) with cryptographic binding that ties each credential to a unique key diversification scheme. Even if the SIO data is read, it cannot be replicated without access to the organization's key management infrastructure.
• NTAG 424 DNA — NXP's authentication-enabled NFC chip generates a unique cryptographic signature (CMAC) on every tap, making each scan verifiably authentic. Used for product authentication and high-security NFC credentials.
• Best practice: pair encrypted cards with a reader infrastructure that enforces mutual authentication and validates the card's cryptographic credentials on every tap, not just the UID.

What are the steps to upgrade from clonable to clone-proof cards?

Knowing your cards are clonable and doing something about it are separated by a procurement cycle, which is where most of the risk actually lives. The upgrade itself is well-trodden — audit, pick a modern credential, reflash readers, reissue — and rarely as disruptive as the budget meeting that precedes it.

1. Step 1
   Audit your current card population. Identify which card technology is deployed across your facility. If you find EM4100, HID Prox, or MIFARE Classic, these are vulnerable and should be prioritized for replacement.
2. Step 2

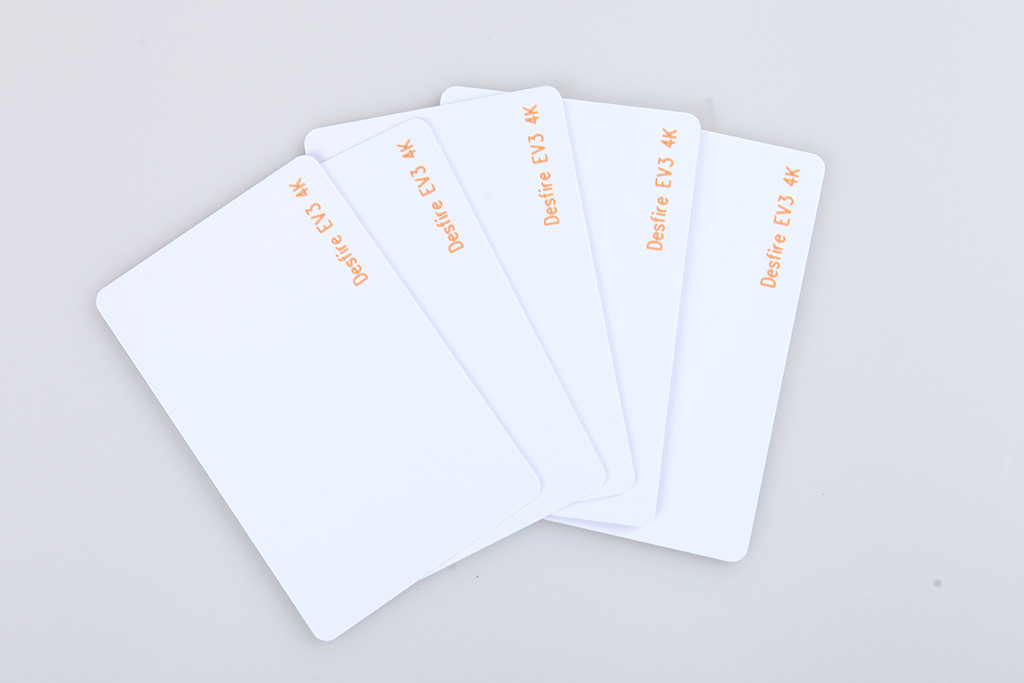

   Select a target technology. MIFARE DESFire EV3 is the most widely recommended upgrade for general access control, offering AES-128 encryption, large memory, and compatibility with most modern reader hardware.
3. Step 3
   Update reader firmware: many existing readers from HID, STid, and other vendors can be firmware-updated to support DESFire EV3 without physical hardware replacement, reducing the upgrade cost significantly.
4. Step 4
   Issue new cards and revoke old credentials. Distribute encrypted cards to all users and disable legacy card types in the access control software to prevent cloned legacy cards from working.
5. Step 5
   Proud Tek supplies MIFARE DESFire EV3 cards with custom printing and pre-encoding at 30-50% less than OEM pricing, making the security upgrade affordable for organizations of all sizes.

What the public NFC and RFID cloning research actually shows

When buyers hear 'NFC cards can be cloned' they often picture a single dramatic exploit. The reality is a chain of well-documented academic and industry findings going back almost twenty years. Understanding which research applies to which chip family is the difference between a wasted upgrade budget and a real security improvement. The summary below references the original public sources rather than vendor marketing.

• Crypto-1 reverse engineering (Nohl, Plotz, Henryk; 2007-2008). Karsten Nohl's Chaos Communication Congress talks demonstrated that NXP's proprietary Crypto-1 cipher used in MIFARE Classic could be reverse-engineered by silicon-level inspection and broken in software. Public follow-up research produced practical key recovery (mfoc, mfcuk, hardnested) that is now bundled in security distributions, which is why MIFARE Classic 1K and 4K should be assumed clonable in 2026.
• Fudan FM11RF08 'static-nonce' backdoor (Quarkslab; 2024). Quarkslab researchers disclosed a hardware-level authentication backdoor in Shanghai Fudan Microelectronics FM11RF08 chips that ship as MIFARE Classic-compatible cards in many low-cost cards and hotel credentials. The finding extends the Crypto-1 problem to a wider population of off-brand 'Classic' inventory and reinforces the argument that any Classic-family deployment in a security context should already be on a migration plan.
• HID iCLASS Standard Security key extraction (Meriac, Garcia; 2010-2014). Multiple disclosures showed that HID iCLASS legacy ('Standard Security') used a single shared site key recoverable from compromised readers. iCLASS SE and Seos use individualized keys and per-credential cryptographic objects, and HID's published guidance is to migrate any remaining Standard Security iCLASS readers and cards.
• EM4100 / HID Prox unrestricted UID copy. 125 kHz Prox-family cards transmit a fixed numeric ID with no authentication or encryption, which is a design property rather than a bug — they predate the threat model. Hand-held devices in the $30-200 range will copy these credentials in seconds, and writable T5577 'magic' tags will impersonate them indefinitely. Treat any 125 kHz Prox population as already public-knowledge.
• Treat compliant AES credentials as 'no known practical attack' rather than 'unbreakable'. NXP DESFire EV2/EV3, HID iCLASS SE/Seos, and NXP NTAG 424 DNA all use industry-standard AES-128 with mutual authentication. There is no public, practical clone of these chips when properly personalized as of mid-2026, but configuration errors (default keys left in place, weak key diversification, OSDP Wiegand fallback) can downgrade them to the same risk level as Classic. Operational hygiene matters as much as chip choice.

Layered defenses beyond swapping the card

Clone-resistant cards close the largest single hole, but a serious access program assumes some credential compromise will eventually happen and adds layers that detect or limit damage when it does. The controls below are the ones that show up most often in modern enterprise physical-security frameworks (CSC v8, NIST SP 800-116, ISO 27001 Annex A.7).

• OSDP v2 Secure Channel between reader and panel. Wiegand wiring leaks the cleartext card number on the cable run, which means an attacker who can briefly access reader wiring can capture credentials regardless of card encryption. OSDP v2 with AES-128 Secure Channel closes that gap and is supported on most current Mercury, HID, and ASSA ABLOY panels.
• Mobile credentials with biometric unlock. Apple Wallet keys, Google Wallet keys, HID Mobile Access, and Wavelynx Ethos credentials live in the phone's Secure Element and require Face ID, Touch ID, or device PIN before they will transmit. Even a stolen phone is a much harder target than a stolen card, and the credential can be revoked instantly from the management console.
• Two-factor at sensitive doors. For server rooms, executive areas, cash rooms, and pharmacy storage, layer a card with a PIN keypad or a biometric reader (Suprema, ZKTeco, Idemia). A cloned card alone no longer grants access. Most enterprise platforms expose this as a per-door policy without requiring new hardware on the rest of the campus.
• Anti-passback and behavioral analytics. Configure the access control software to flag the same credential entering twice from different doors within an impossible interval, or appearing at hours that don't match the cardholder profile. Genetec, Lenel, Brivo, Verkada, and Genea all expose these rules out of the box and convert what would be a silent breach into an alert.
• Visible deterrents and program hygiene. Posting the visitor badge expiration prominently, refusing tailgating, returning lost cards immediately, and rotating shared cards on a fixed schedule all raise the cost of a successful cloning operation. None of these are technical, but they shrink the attacker's window between cloning a card and using it before the card is reissued.
